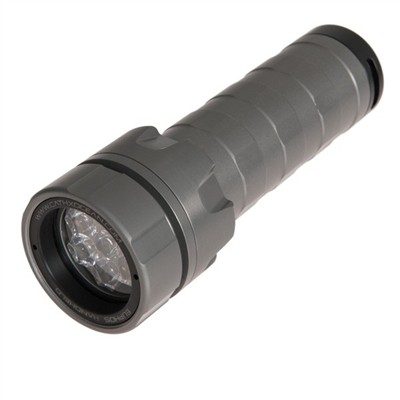

EUPHOS HANDHELD LIGHT
|
Performance
|
|
|
Light Type:
|
Solid state LED
|
|
Light Power Output:
|
1,250 lumens
|
|
Light Color Temperature:
|
6500°K
|
|
Beam Angle / Shape:
|
8° full angle beam in water
|
|
Operation Modes:
|
4 level light output, Strobe & SOS
|
|
Thermal Protection:
|
auto low power in air, microprocessor over temperature control
|
| |
|
|
Electrical
|
|
|
Operating Voltage:
|
11.1V 2.6Ah Lithium Ion Battery pack
|
|
Power Consumption:
|
18W max
|
|
Battery Charger:
|
AC power supply, 15V DC charge current
|
|
Battery Capacity Status:
|
Green: >66%
Amber: 33-66%
Red: <33%
Flashing Red: 0%
|
|
Charge Time:
|
<4.5 hours
|
|
Runtime:
|
|
|
- Level 1 @150 lumens
|
10 hours
|
|
- Level 2 @500 lumens
|
3.5 hours
|
|
- Level 3 @800 lumens
|
130 minutes
|
|
- Level 4 @1250 lumens
|
75 minutes
|
|
- Strobe
|
24 hours from full charge
|
|
- SOS
|
24 hours from full charge
|
|
Power Stability
|
<3% deviation over runtime in water
|
| |
|
|
Mechanical
|
|
|
Body Material:
|
Anodized 6082-T6 Alloy
|
|
Charge Pins:
|
316 stainless steel
|
|
Output Window:
|
clear Acrylic
|
|
Window Retainer & End Cap:
|
black Acetal
|
|
Dimensions:
|
63.0mm (2.5in) diameter x 184mm (7.2in) length
|
|
Weight:
|
in air 620g (1.36lbs)
in water <250g (0.55lbs)
|
|
Optional Accessories:
|
Retainer Lanyard
Coil Lanyard
Goodman Handle
Pistol Grip
Video Diffuser insert & mounting bracket
|
| |
|
|
Environmental
|
|
|
Depth Rating:
|
250m (820ft)
|
|
Impact Testing:
|
tested to a free-fall height of 2m without operational defects
|
|
Pressure Testing:
|
seal integrity and operation validated
|
|
Operating Temperature:
|
in air* -35°C to +50°C
in water -2°C to +36°C
|
|
Storage Temperature:
|
in air* ** -35°C to +50°C
|
|
Chemical Resistance:
|
“O” rings and seal designs tolerant of petrochemicals
|
|
Operating Conditions:
|
Seawater & Saltwater
Lakes Estuaries, swamps & other brackish water
Fresh Water
|
- *Although the light can operate and stored in these conditions it is recommended that they do not remain at the upper and lower limits of these ranges for prolonged periods of time. The unit should not be charged at temperatures below 0°C and greater than 45°C as it will lead to accelerated degradation of the battery cell.
** The recommended storage temperature range for Lithium-Ion batteries is -20°C to 35°C

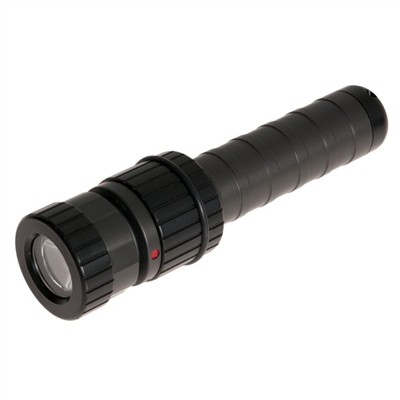

EUPHOS MINI
|
Performance
|
|
|
Light Type:
|
Solid state LED
|
|
Light Power Output:
|
300 or 600 lumens
|
|
Light Color Temperature:
|
6500°K
|
|
Beam Angle / Shape:
|
10.5° full angle beam in water
|
|
Operation Modes:
|
3 level light output
|
|
Thermal Protection:
|
auto low power in air, microprocessor over temperature control
|
| |
|
|
Electrical
|
|
|
Operating Voltage:
|
3.7V 2.6Ah Lithium Ion Single Cell Battery
|
|
Power Consumption:
|
6.5W max
|
|
Battery Charger:
|
AC power supply, 15V DC charge current
|
|
Battery Capacity Status:
|
Green: >66%
Amber: 33-66%
Red: <33%
Flashing Red: 0%
|
|
Charge Time:
|
3 hours
|
|
Runtime:
|
|
|
- Level 1 @75 lumens
|
10 hours
|
|
- Level 2 @300 lumens
|
2.5 hours
|
|
- Level 3 @600 lumens
|
1.5 hours
|
| |
customizable runtime configurations available***
|
|
Power Stability
|
<3° deviation over runtime in water
|
| |
|
|
Mechanical
|
|
|
Body Material:
|
Hard Anodized 6082-T6 Alloy
|
|
Charge Pins:
|
316 stainless steel
|
|
Output Window:
|
clear Acrylic
|
|
Window Retainer:
|
black Acetal
|
|
Dimensions:
|
42.0mm (1.6in) diameter x 167mm (6.6in) length
|
|
Weight:
|
in air 270g (9.5oz)
in water <140g (4.9oz)
|
|
Optional Accessories:
|
dive mask clip
|
| |
|
|
Environmental
|
|
|
Depth Rating:
|
250m (820ft)
|
|
Impact Testing:
|
tested to a free-fall height of 2m without operational defects
|
|
Pressure Testing:
|
seal integrity and operation validated
|
|
Operating Temperature:
|
in air* -35°C to +50°C
in water -2°C to +36°C
|
|
Storage Temperature:
|
in air* ** -35°C to +50°C
|
|
Chemical Resistance:
|
“O” rings and seal designs tolerant of petrochemicals
|
|
Operating Conditions:
|
Seawater & Saltwater Lakes
Estuaries, swamps & other brackish water
Fresh Water
|
- * Although the light can operate and stored in these conditions it is recommended that they do not remain at the upper and lower limits of these ranges for prolonged periods of time. The unit should not be charged at temperatures below 0°C and greater than 45°C as it will lead to accelerated degradation of the battery cell.
** The recommended storage temperature range for Lithium-Ion batteries is -20°C to 35°C
***subject to minimum order quantities

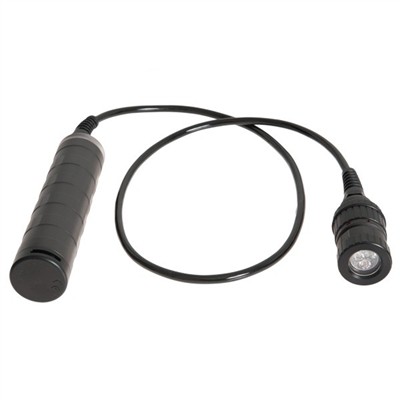

EUPHOS MASK MOUNTED LIGHT
|
Performance
|
|
|
Light Type:
|
Solid state LED
|
|
Light Power Output:
|
900 lumens
|
|
Light Color Temperature:
|
6500°K
|
|
Beam Angle / Shape:
|
18.3° full angle beam in water
|
|
Operation Modes:
|
3 level light output
|
|
Thermal Protection:
|
auto low power in air, microprocessor over temperature control
|
| |
|
|
Electrical
|
|
|
Operating Voltage:
|
11.1V 5.2Ah Lithium Ion Single Cell Battery
|
|
Power Consumption:
|
18W max
|
|
Battery Charger:
|
AC power supply, 15V DC charge current
|
|
Battery Capacity Status:
|
Green: >66%
Amber: 33-66%
Red: <33%
Flashing Red: 0%
|
|
Charge Time:
|
5 hours
|
|
Runtime:
|
|
|
- Level 1 @300 lumens
|
18 hours
|
|
- Level 2 @600 lumens
|
8 hours
|
|
- Level 3 @900 lumens
|
4.5 hours
|
|
Power Stability
|
<3° deviation over runtime in water
|
| |
|
|
Mechanical
|
|
|
Body Material:
|
Hard Anodized 6082-T6 Alloy
|
|
Charge Pins:
|
316 stainless steel
|
|
Output Window:
|
clear Acrylic
|
|
Selector Ring:
|
black Acetal
|
|
Power Cable:
|
PU Gel Filled cable with two 18 guage cores
|
|
Lighthead Dimensions:
|
42.0mm (1.6in) diameter x 85mm (3.4in) length
|
|
Battery Pack Dimensions:
|
47.0mm (1.9in) diameter x 209mm (8.2in) length
|
|
Lighthead Weight:
|
in air 190g (0.419oz)
in water <90g (0.198oz)
|
|
Total Body Weight:
|
in air 880g (1.94oz)
in water <400g (0.882oz)
|
|
Optional Accessories:
|
mask mounted clip for dive mask
includes blinker to reduce glare, flash or dazzle from light
|
| |
|
|
Environmental
|
|
|
Depth Rating:
|
250m (820ft)
|
|
Impact Testing:
|
tested to a free-fall height of 2m without operational defects
|
|
Pressure Testing:
|
seal integrity and operation validated
|
|
Operating Temperature:
|
in air* -35°C to +50°C
in water -2°C to +36°C
|
|
Storage Temperature:
|
in air* ** -35°C to +50°C
|
|
Chemical Resistance:
|
“O” rings and seal designs tolerant of petrochemicals
|
|
Operating Conditions:
|
Seawater & Saltwater Lakes
Estuaries, swamps & other brackish water
Fresh Water
|
- * Although the light can operate and stored in these conditions it is recommended that they do not remain at the upper and lower limits of these ranges for prolonged periods of time. The unit should not be charged at temperatures below 0°C and greater than 45°C as it will lead to accelerated degradation of the battery cell.
** The recommended storage temperature range for Lithium-Ion batteries is -20°C to 35°C

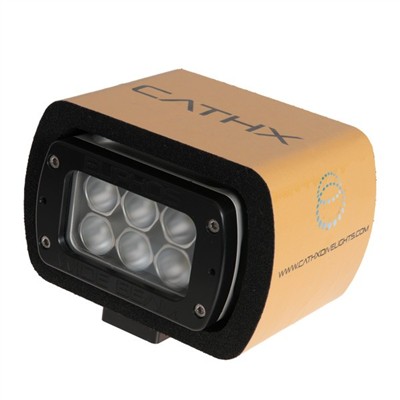

EUPHOS VIDEO LIGHT
|
Performance
|
|
|
Light Type:
|
Solid state LED
|
|
Light Power Output:
|
4000 lumens
|
|
Light Color Temperature:
|
5700°K
|
|
Beam Angle / Shape:
|
70° full angle diffuse spot
|
|
Operation Modes:
|
4 level light output
|
|
Thermal Protection:
|
auto low power in air, microprocessor over temperature control
|
| |
|
|
Electrical
|
|
|
Operating Voltage:
|
14.8V 5.2Ah Lithium Ion 18650 Battery pack
|
|
Power Consumption:
|
xxxxW max
|
|
Battery Charger:
|
AC power supply, 15V DC charge current
|
|
Battery Capacity Status:
|
Green: >66%
Amber: 33-66%
Red: <33%
Flashing Amber: 0%
|
|
Charge Time:
|
|
|
Runtime:
|
|
|
- Level 1 @1000 lumens
|
5 hours
|
|
- Level 2 @2000 lumens
|
2.5 hours
|
|
- Level 3 @3000 lumens
|
110 minutes
|
|
- Level 4 @4000 lumens
|
75 minutes
|
|
Power Stability
|
<1% deviation over runtime in water
|
| |
|
|
Mechanical
|
|
|
Body Material:
|
Anodized 6082-T6 Alloy
|
|
Battery Housing:
|
Black Acetal Copolymer
|
|
Charge Pins:
|
316 stainless steel
|
|
Output Window:
|
clear Acrylic
|
|
Window Retainer:
|
Black Acetal Copolymer
|
|
Dimensions:
|
142mm (5.60”) length x 110mm (4.33in) width x 65mm (2.56in) height
|
|
Weight:
|
in air 1200g (2.64lbs)
in water <350g (0.77lbs)
|
|
Mounting Options:
|
Hard Anodized Alloy Plate with M6 and ¼” UNC threads (included) optional 1” Ultralight Ball
customer specified mounting options also available
|
|
Optional Buoyancy Jacket:
|
|
|
- Material Divinycell
|
HCP30
|
|
- Mass of Buoyancy
|
106g (3.74oz)
|
|
- Pressure Rating
|
300m (985ft)
|
|
- Displacement Volume
|
529 cm3 (17.9 floz)
|
|
- System Buoyancy
|
>30g (1.1oz) positive – (light, mounting bracket & ball)
|
| |
|
|
Environmental
|
|
|
Depth Rating:
|
250m (820ft)
|
|
Pressure Testing:
|
seal integrity and operation validated
|
|
Operating Temperature:
|
in air* -35°C to +50°C
in water -2°C to +36°C
|
|
Storage Temperature:
|
in air* ** -35°C to +50°C
|
|
Chemical Resistance:
|
“O” rings and seal designs tolerant of petrochemicals
|
- *Although the light can operate and stored in these conditions it is recommended that they do not remain at the upper and lower limits of these ranges for prolonged periods of time. The unit should not be charged at temperatures below 0°C and greater than 45°C as it will lead to accelerated degradation of the battery cell.
** The recommended storage temperature range for Lithium-Ion batteries is -20°C to 35°C
